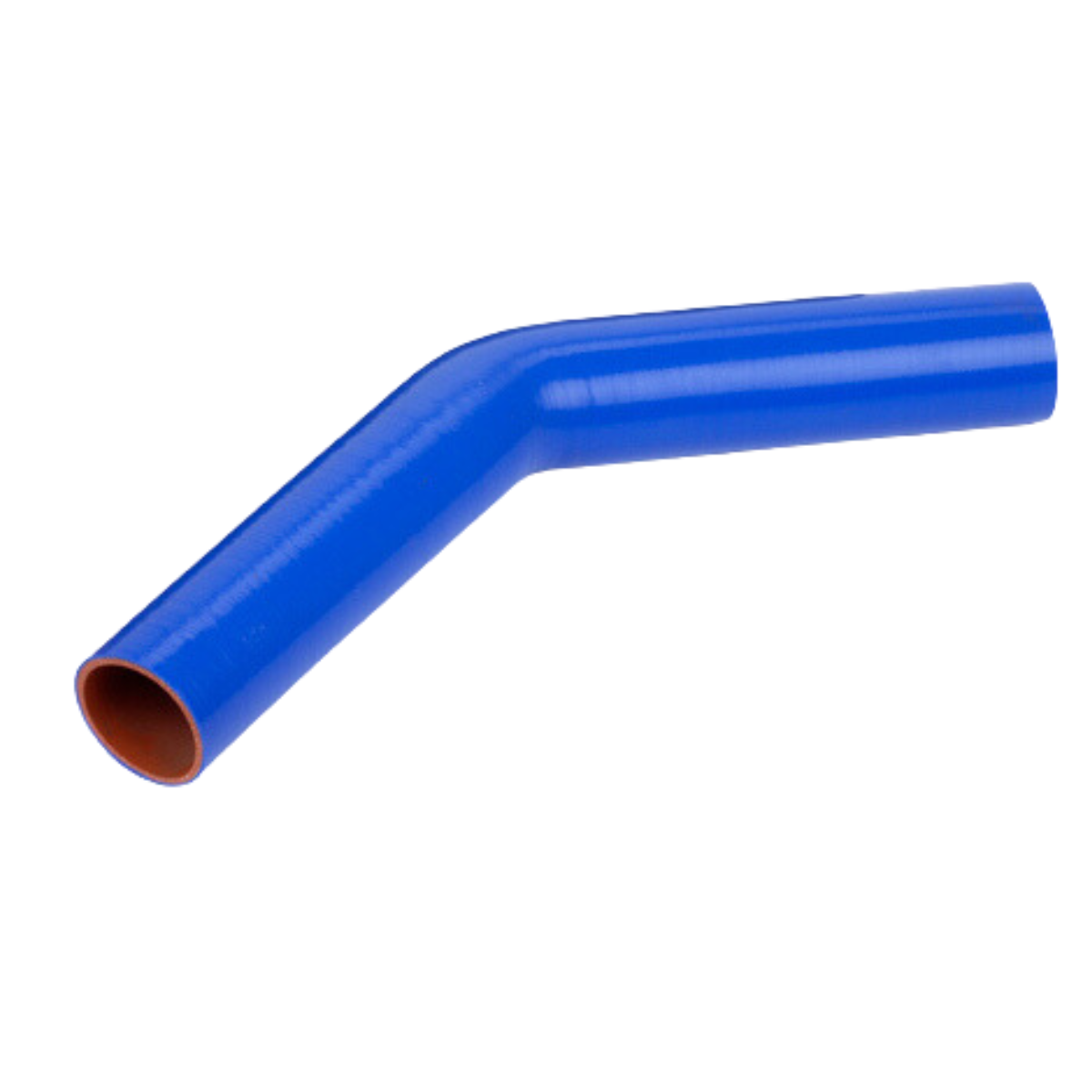

3.00in I.D. 45 Degree Preformed Coolant Hose | Blue With 10" Legs
If you have a question about this part or want to verify availability
Live Chat: Message Us Now Text: (903) 956-1103
Email: sales@allprotruckparts.com
Regular price
$39.61
_
For bulk pricing or questions regarding availability please contact us.
Couldn't load pickup availability
Specifications:
| Wall Thickness | .18 - .23 |
| Burst PSI | 95 |
| I.D. 1 | 3.00 |
| I.D. 2 | 3.00 |
| Leg Length | 10" Legs |
| Color | Blue |
| Overall Length | N/A |
| Vacuum Rating | N/A |
Product Series Specifications:
| Specification | Characteristics |
|---|---|
| Material | 5 Ply Silicone with Polyester Fabric Reinforcement |
| Resistance | Ozone & Oil Splash Resistant |
| Applications | Suitable For Heavy Duty Applications |
| Standards Compliance | Meets and Exceeds All Performance and Physical Requirements of: SAE J20 RI, RP 303B Class 1, Mil-Spec A-A-52426, OEM Heavy-Duty Vehicle Requirements |
| High-Temperature Option | Available with Meta-Aramid Fabric Reinforcement for Extreme High-Temperature (Upon Request) |
| Liner Options | Available with Fluorosilicone or Fluorocarbon Liner (Petroleum & Chemical Applications) |
| Vacuum Resistance | Available with Helical Wire Reinforcement for Vacuum Resistance |
| Temperature Range | -65Β°F to 350Β°F Continuous |
| Colors | Blue or Black |
| Leg Length | 10β Long Legs From Center of the Bend |
| Measurement | Leg Lengths Are Measured From The Centerline of the Hose |
Β
Sell Pack Quantity: 1
